Tees

round tube tee
Round tee with three identical ports and a mount hole. See table for dimensions.

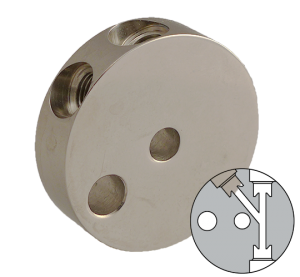

tee_motorcycle_bq177ss
BQ177SS
Motorcycle Tee
3/8-24 UNF, inverted seat
47mm diameter, 1/2″ thick
Part Number Thread Seat Diameter Mount Mount Hole Thickness
BQ93A 1/8-27 NPT NPT 31.75mm Bolt 8.2mm 14mm
BQ264 3/8-24 UNF 45° T shape none none 1/2”
BQ56A 3/8-24 UNF 45° 28.6mm Bolt 8.2mm 1/2”
BQ56ASS 3/8-24 UNF 45° 28.6mm Bolt 8.2mm 1/2”
BQ90A 3/8-24 UNF 45° 31.75mm Bolt 8.2mm 1/2”
BQ94A 7/16-20 UNF Bubble 31.75mm Bolt 8.2mm 14mm
BQ92A 7/16-24 UNS 45° 31.75mm Bolt 8.2mm 14mm
BQ91A M10 × 1 45° 31.75mm Bolt 8.2mm 1/2”
BQ95A M10 × 1 DIN 31.75mm Bolt 7.2mm 14mm



Assortment Kit

bq7002_contents
