Bump Tube Adapters

JIC bump tube adapter

Part Number JIC Stud Thread O-ring Pilot Thread Hex Overall Length
5MBT-5MJ 1/2-20 UNF (-5 JIC) 1/2-20 UNF 9/16” 37.4mm
7MBT-6MJ 9/16-18 UNF (-6 JIC) 11/16-18 UNS 3/4” 41.9mm
14MMBT-6MJ 9/16-18 UNF (-6 JIC) M14 × 1.5 5/8” 38.8mm
16MMBT-6MJ 9/16-18 UNF (-6 JIC) M16 × 1.5 17mm 38.9mm
18MMBT-6MJ 9/16-18 UNF (-6 JIC) M18 × 1.5 3/4” 39.4mm



Other Bump Tube Adapters

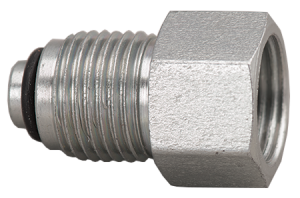

female bump tube adapter
BQ16MMBT-6FI
Port Thread: 5/8-18 UNF
inverted seat
O-ring Pilot: M16 × 1.5
Hex: 3/4″

Assortment kit

bq7003_contents
